Free EMC Testing and Rectification Services: How VIIP's In-House Laboratory Accelerates Global Certification

Shenzhen, Guangdong Oct 13, 2026 (Issuewire.com) - Securing electromagnetic compatibility (EMC) compliance represents an essential milestone in bringing commercial power supplies, industrial machinery, and consumer electronics to international markets. To accelerate pre-compliance verification and streamline product development cycles, Shenzhen VIIP Electronics Co., Ltd. (VIIP) provides complimentary free EMC testing and rectification services through its in-house professional laboratory at its Shenzhen headquarters. By integrating calibrated test facilities with an extensive inventory of magnetic cores and power line filters, VIIP offers hardware developers an efficient test-diagnose-rectify-verify engineering workflow.

Five-Stage Closed-Loop Engineering Rectification Workflow

To resolve electromagnetic compliance issues rapidly, VIIP structures its in-house laboratory services around a structured five-stage technical workflow:

Initial Pre-Compliance Baseline Scanning: Performing full-frequency spectrum scans across CISPR 11, CISPR 32, FCC Part 15, and EN 55032 standards to identify specific frequency exceedances and margin deficits.

Root-Cause Noise Decomposition: Adopting precision RF diagnostic probes to isolate common-mode noise from differential-mode interference across power and signal paths.

On-Site Component Matching and Topology Tuning: Selecting high-permeability VIIP Manganese-Zinc (MnZn) toroidal chokes, sendust inductors, and safety capacitors directly from in-house stock to build tuned suppression circuits.

Iterative Real-Time Verification: Executing immediate re-scans in calibrated shielded enclosures to verify attenuation improvements and confirm required regulatory margins.

Formal Design Documentation and Sample Supply: Delivering complete engineering rectification reports, schematic modifications, and production-ready component samples for official third-party qualification.

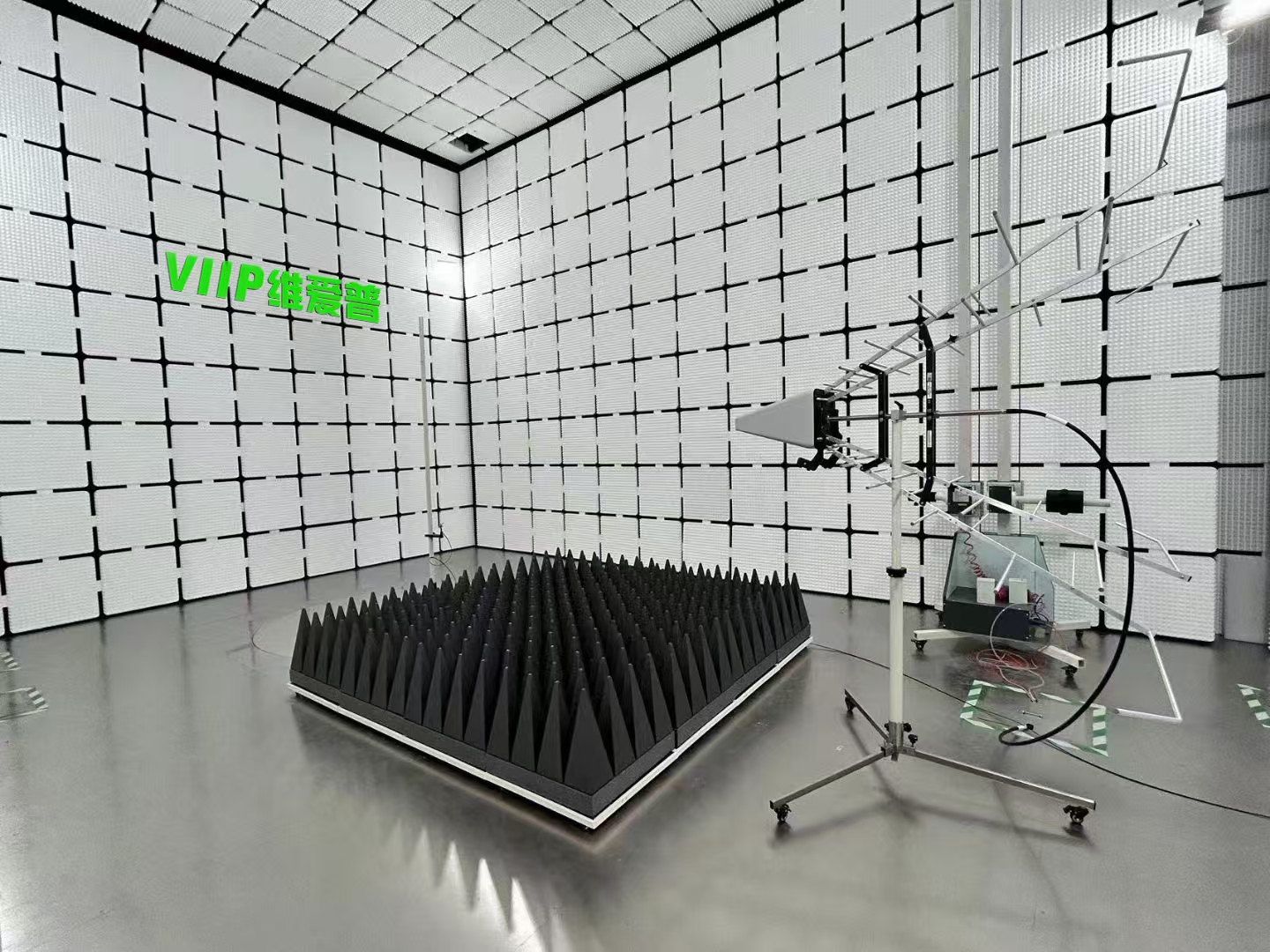

Precision RF Shielded Enclosures and Anechoic Chamber Test Infrastructure

Effective noise diagnostic analysis requires an isolated electromagnetic environment to prevent ambient radio frequency interference from contaminating test readings. The VIIP testing facility houses advanced RF shielded enclosures and calibrated semi-anechoic chambers engineered to maintain high ambient isolation across the 10kHz to 1GHz test spectrum.

The laboratory is equipped with precision test instrumentation, including computerized EMI receivers, line impedance stabilization networks (LISN), transient limiters, near-field magnetic and electric field probe sets, and broadband receiving antennas. These calibrated assets allow VIIP application engineers to replicate official third-party test configurations, helping pre-compliance measurements achieve reliable correlation with accredited test houses across both standard commercial and specialized industrial or defense-related EMC criteria.

Conducted Emission (CE) and Radiated Emission (RE) Spectrum Decomposition

Achieving targeted noise attenuation requires precise identification of underlying coupling paths. When power supply units or motor drives exhibit conducted emission anomalies between 150kHz and 30MHz, VIIP engineers employ RF noise separators to decouple composite spectral traces into distinct common-mode and differential-mode curves.

Low-frequency peaks below 500kHz typically indicate differential switching harmonics generated by input rectifier stages and primary power switches. These are addressed by optimizing across-the-line Class-X capacitors and series differential-mode inductors. High-frequency conducted peaks from 1MHz to 30MHz and radiated emissions from 30MHz to 1GHz stem primarily from steep dv/dt voltage transitions coupling through heatsink parasitic capacitances to chassis ground. These high-frequency paths are resolved by implementing high-permeability VIIP MnZn common-mode chokes, tuning Class-Y grounding capacitors, and applying lossy VIIP Nickel-Zinc (NiZn) clamp cores over input/output harnesses.

On-Site Component Tuning and Customized Electromagnetic Filter Matching

A key engineering advantage of VIIP's in-house laboratory is the direct physical integration between its diagnostic testing facility and its central component warehouse. During diagnostic sessions, VIIP application engineers select from hundreds of ready-to-test components, adjusting winding turn ratios, core permeability grades, and multi-stage circuit topologies directly on the workbench. Engineers can evaluate standard catalog VIIP EMI filters or assemble custom prototype filters within hours. This hands-on iterative workflow enables visiting hardware teams to validate optimized filter designs that maintain comfortable regulatory margins (typically 6dB or greater below statutory limit lines).

Extensive Inventory Support: 0.1A to 3000A Filters and 300+ Core Geometries

The effectiveness of on-site rectification relies on immediate component availability. Shenzhen VIIP Electronics Co., Ltd. backs its laboratory services with an extensive component portfolio manufactured across its facilities in Huizhou, Bozhou, and Huzhou:

Power Line Filter Assemblies: Single-phase 110V/250VAC, three-phase 380V/480V/600VAC, and DC filter units covering current ratings from 0.1A to 3000A with insertion loss attenuation from 30dB to 100dB.

Anti-Interference Soft Ferrite Cores: Over 300 active specifications, including VIIP MnZn toroidal cores with initial permeability up to 15,000, NiZn cable clamp rings (F9 material delivering 155 Ohms or higher at 100MHz), and flat cable cores for ribbon wiring.

Custom Inductive Assemblies: Rapid tooling capabilities supporting customized magnetic geometries, vertical/horizontal encapsulated bobbins, and high-saturation powder cores.

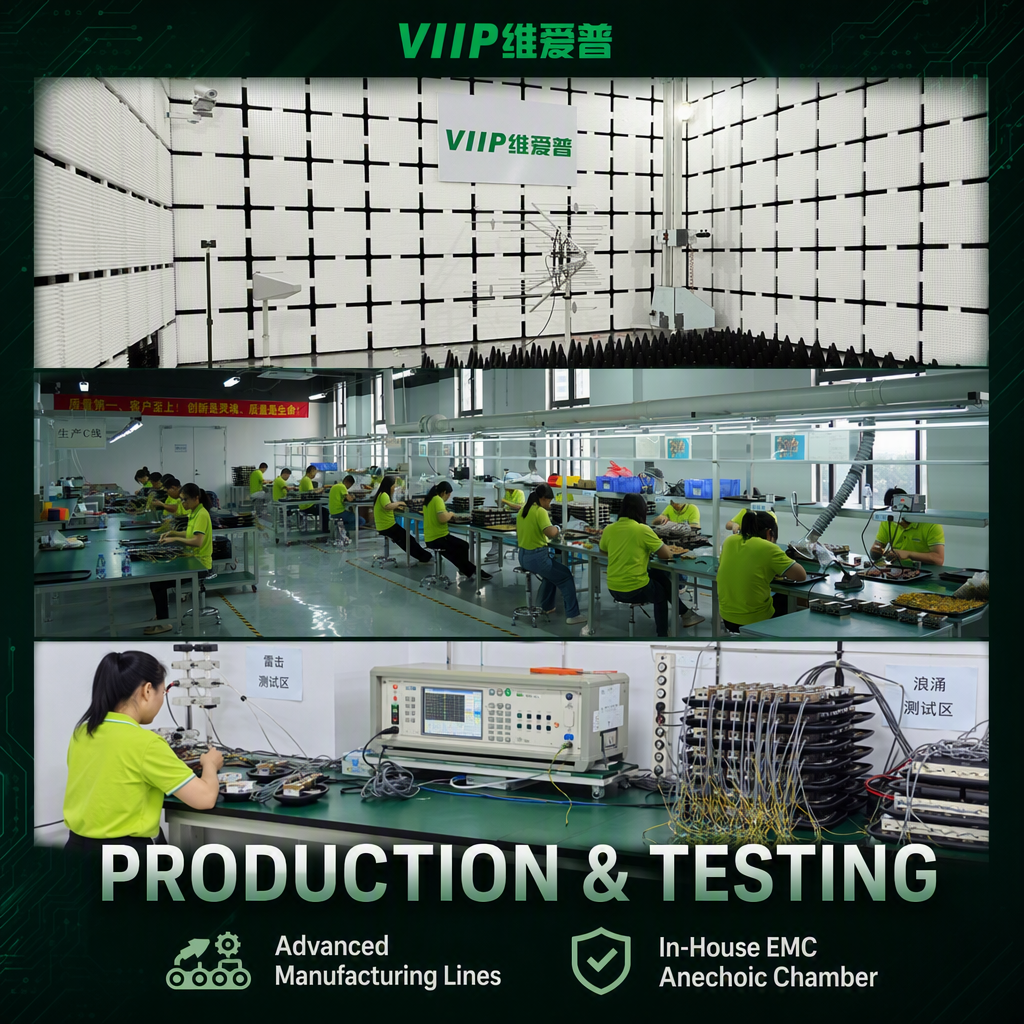

Collaborative Engineering Synergies of In-House Factory Pre-Compliance Facilities

Collaborating with a dedicated manufacturing laboratory provides practical technical and supply chain synergies for electronic hardware programs. While accredited test houses specialize in formal compliance logging, VIIP's in-house laboratory focuses on collaborative engineering diagnostics, iterative tuning, and circuit-level problem solving.

To streamline early-stage design iteration, VIIP provides equipment development partners with direct access to its Shenzhen laboratory facilities and engineering consultation. During on-bench troubleshooting, applications specialists deliver hands-on assembly guidance and supply targeted prototyping elements, including ferrite cores, amorphous ring inductors, and specialized EMC shielding materials, to evaluate circuit adjustments in real time. Because these diagnostic solutions are developed directly around VIIP's high-volume standard component portfolio, hardware teams maintain that optimized benchtop configurations transition smoothly into stable, cost-effective commercial mass production.

Verified Industry Collaborations: DJI, Xiaomi, Topband, and Creality 3D

VIIP's laboratory diagnostic capabilities and volume manufacturing repeatability are proven through long-standing technical collaborations with global technology brands. Leading innovators, including DJI in robotic aerial systems, Xiaomi in smart consumer electronics, Topband in intelligent controllers, and Creality 3D in additive manufacturing machinery, rely on VIIP components for electromagnetic compatibility and reliable power conversion.

All production filters and magnetic components hold certified compliance across CQC, UL, VDE, TUV, CE, and CB international safety frameworks, alongside full RoHS and REACH environmental compliance.

Pre-Compliance Scheduling and Technical Rectification Collaboration

Electronics manufacturers, power supply engineers, and compliance managers can accelerate global product qualification by scheduling a pre-compliance testing session at VIIP's Shenzhen laboratory. Visit the official international technical portal at https://en.szviip.com/ to submit device electrical parameters, upload preliminary test data, and secure direct engineering collaboration for fast-turnaround electromagnetic compliance.
